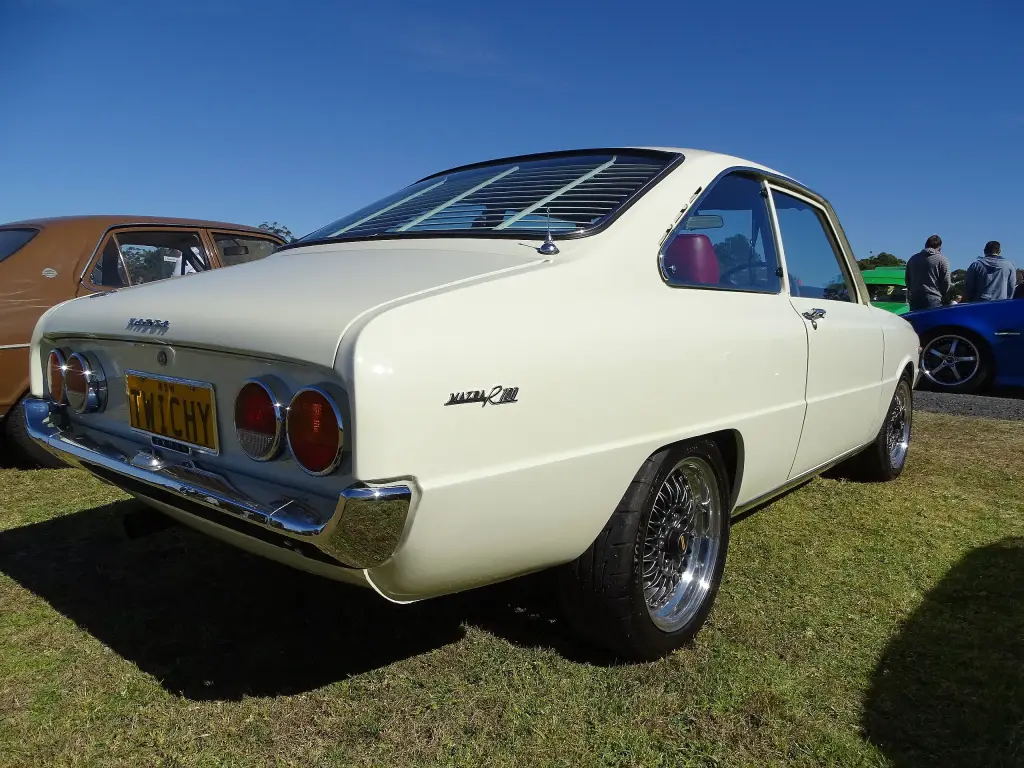

The Mazda R100 is a small 2+2 coupé that Mazda built from 1968 to 1973, known in Japan as the Familia Presto Rotary. It was the rotary-engined version of the Familia/1000 coupé, using the 0820 Wankel engine from the Cosmo in a simpler state of tune.
Mazda R100 at a glance
| Built | 1968–1973 |
|---|---|
| Japanese name | Familia Presto Rotary |
| Type | 2+2 coupé |
| Based on | Mazda 1000/1300 (Familia) coupé |
| Engine | 0820 twin-rotor Wankel from the Cosmo |
| Carburettor | single |
| Power | 74 kW (100 PS) |
| Top speed | 175–180 km/h |
| Rear suspension | live axle, drum brakes at the rear |
| Markets | Japan, the USA and some European countries, notably France |
The English Wikipedia covers the R100 inside the Familia article; the technical data comes from the German R100 article.
History of the Mazda R100
The R100 was, apart from its engine, a technically unchanged coupé version of the Mazda 1000/1300, which was called the Familia in Japan. Its 0820 Wankel engine came from the second-series Mazda 110S Cosmo but was fitted with a single carburettor and detuned to 74 kW (100 PS). The rest of the car was very conventional, with a live rear axle and drum brakes at the rear.
Mazda sold the R100 in Japan, the United States and some European markets, notably France, but not in Germany. In Japan it was launched in June 1968, Mazda’s second rotary-engined car after the Cosmo, and it stayed in production until 1973. In Japan the rotary Familia was later replaced by the RX-3/Savanna, while export markets moved on to the RX-2 and RX-3, which used the later Capella and Grand Familia bodies.
Design and features
- Twin-rotor engine: the 0820 unit from the Cosmo, with 100 PS.
- Familiar body: the Familia coupé shell with conventional suspension and brakes.
- Second rotary: Mazda’s second Wankel model after the Cosmo.
- Export car: sold in Japan, the USA and France, though not in Germany.
Mazda R100 versions
- Familia Presto Rotary (1968–1973): the Japanese-market car.
- Mazda R100: the export version of the same car.
The R100 followed the Mazda Cosmo as Mazda’s second rotary car and was replaced by the rotary versions of the Capella and Grand Familia. More Mazdas are in the Mazda collection.
Sources
- Mazda R100, German Wikipedia: dates, engine, power, markets
- Mazda Familia, English Wikipedia: place in the Familia line
- マツダ・ファミリア, Japanese Wikipedia: June 1968 launch and second-rotary position
