Nuffield 10/60: ten gears and sixty horsepower

NUFFIELD

Nuffield 10/60
Nuffield 10/60. Photo by Calreyn88, CC BY-SA 4.0 via Wikimedia Commons.

The Nuffield 10/60 (also written 1060) was the 60 hp model of the 10 series, introduced in 1964. It used the 3.8-litre BMC four-cylinder diesel with a ten-speed gearbox, and it was replaced in 1967 by the 4/65.

Nuffield 10/60 at a glance

Nuffield 10/60 key facts
Maker Nuffield, British Motor Corporation
Production 1964–1966 or 1967
Series 10 series
Engine 3.8-litre BMC four-cylinder diesel
Power 60 hp (45 kW)
Gearbox ten forward gears
Range-mates 10/42 (2.8-litre, 42 hp) and 10/90
Claim to fame first British tractor range with ten forward gears
Colour “Poppy Orange”
Replaced by 4/65 in 1967

Based on one source, the English Wikipedia article on the Nuffield Universal, which describes the 10/60 in its section on the 10 series. The model is also written Nuffield 1060.

History of the Nuffield 10/60

The 10 series arrived in 1964 as the replacement for the 3/42 and 4/60. Nuffield built three models: the 10/42 with a 2.8-litre diesel of 42 hp, the 10/60 with the 3.8-litre BMC diesel rated at 60 hp, and the 10/90 with a larger BMC diesel. The range came with ten forward gears, and Nuffield claimed that this made it the first British tractor with ten speeds, against the five-speed gearbox of the Universal generation that had gone before.

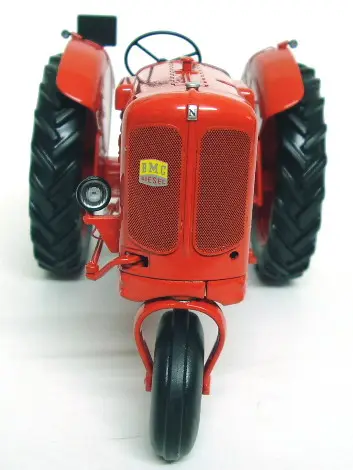

The 10/60, sometimes written 1060, was the model that carried the four-cylinder line forward. Its 3.8-litre engine was the BMC unit that had first appeared in the 4/60 of 1961, itself made by boring out the 3.4-litre engine of the Universal 4. The tractors wore the Poppy Orange paint that had been the Nuffield signature since the Universal was launched at the Smithfield Show in December 1948.

The series did not last long in its original form. Production ended in 1966 or 1967, and the 3/45 and 4/65 took over in 1967. The 4/65 used the same 3.8-litre BMC four-cylinder, but reworked with eight overhead valves and rated at 65 hp rather than 60. At the small end of the range the Mini 9/16 of 1965–1968, with a 16 hp engine, stood well below the 10 series.

In 1968 the British Motor Holdings group merged with the Leyland Motor Corporation, which also owned Standard Triumph and Rover, to create British Leyland. Tractor production carried on under the Nuffield name until 1969, when the tractors were renamed Leyland Tractors and the poppy-red paint gave way to the two-tone blue of the Leyland corporate scheme. British Leyland is reported to have looked at selling the tractor business to David Brown, but nothing came of the idea.

Design and features

  • Ten forward gears: the feature Nuffield used to promote the whole 10 series as a British first.
  • 3.8-litre BMC diesel: the four-cylinder unit from the 4/60, rated at 60 hp.
  • Three-model range: the 10/42, 10/60 and 10/90 covered different power classes.
  • Nuffield colours: finished in Poppy Orange, like every Nuffield since 1948.

Nuffield 10/60 versions

  • 10/60 (1964–1966/67): 3.8-litre BMC diesel, 60 hp, the subject of this page.
  • 10/42 (1964–1966/67): 2.8-litre diesel, 42 hp.
  • 10/90 (1964–1966/67): larger BMC diesel at the top of the range.
  • Mini 9/16 (1965–1968): a separate small model with a 16 hp engine.

The 10/60 replaced the four-cylinder Nuffield 460 and was itself replaced by the 4/65. The line began with the Nuffield Universal, and more tractors are in the Nuffield collection.
